Fancy Isometric Projection

[Simon ArmstrongParticipant]

This morning I started my third banana, an isometric voxel world thing.

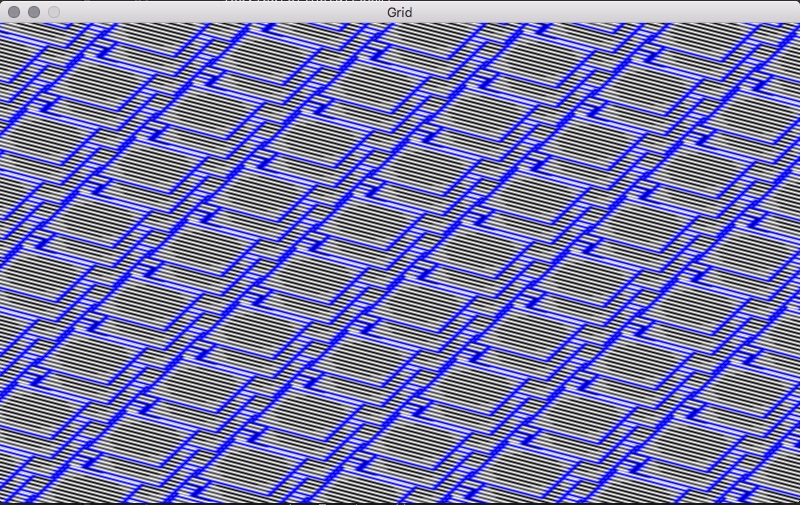

Am quite pleased with progress so far. The isometric transform is done with far to near rendering order using a grid traversal pattern I came up with a few years back.

For each square of the grid I plan to sort sprites from near to far. Rotating by theta faces sprites towards camera, leaving them at 0 faces them towards the sky.



Monkey

Namespace myapp #Import "<std>" #Import "<mojo>" Using std.. Using mojo.. Class PixelMap Extends Pixmap Method New(w:Int,h:Int) Super.New(w,h) end method Rect(rx:Int,ry:int,rw:int,rh:Int,c:Color) For Local y:=ry Until ry+rh For Local x:=rx until rx+rw SetPixel(x,y,c) Next next End method Ball(rx:Int,ry:int,r:Int,c:Color) For Local y:=-r To r For Local x:=-r To r Local dd:=x*x+y*y If dd<r*r SetPixel(rx+x,ry+y,c) endif Next next End End Class Tile Field pixmap:=New PixelMap(32,32) Field image:Image Method New() pixmap.Clear(Color.None) pixmap.Rect(4,4,24,24,Color.Blue) pixmap.Rect(6,6,20,20,Color.DarkGrey) pixmap.Ball(16,16,10,Color.Black) For Local i:=5 to 27 Step 2 pixmap.Rect(i,5,1,22,Color.White) next image=new Image(pixmap) end end Class GridWindow Extends Window Field framecount:Int Field tile:Tile Method New() Super.New("Grid",800,480) ClearColor=Color.Black tile=New Tile() End Method IsoView(c:Canvas, theta:Double, zoom:double) Local tx:=Cos(theta)*zoom Local ty:=Sin(theta)*zoom zx=ty zy=tx c.Matrix=new AffineMat3f(tx,ty*0.5,-ty,tx*0.5,400,240) End Field zx:Double Field zy:Double Global Order4:=New Int[]( 1,0,0,1, 0,1,-1,0, -1,0,0,-1, 0,-1,1,0) Method OnRender( c:Canvas ) Override App.RequestRender() Local zoom:=0.1*Mouse.Location.Y Local theta:=0.03*framecount IsoView(c,theta,zoom) ' calulate draw order so we scan grid from far to near Local quadrant:Int=Int(2*theta/Pi)&3 local ix:=Order4[quadrant*4+0] local jx:=Order4[quadrant*4+1] local iy:=Order4[quadrant*4+2] local jy:=Order4[quadrant*4+3] Local n:=20 For Local i:=-n To n For Local j:=-n To n Local x:=i*ix+j*jx Local y:=i*iy+j*jy For Local z:=12 To 0 Step -3 c.DrawImage(tile.image,x*34+z*zx,y*34+z*zy) ' c.DrawImage(tile.image,x*24,y*24,theta) next Next next framecount+=1 End Method OnKeyEvent( event:KeyEvent) Override If event.Type=EventType.KeyDown If event.Key=Key.Escape App.Terminate() Print "Escape" endif endif end End Function Main() New AppInstance New GridWindow App.Run() End

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128

Namespace myapp   #Import "<std>" #Import "<mojo>"   Using std.. Using mojo..   Class PixelMap Extends Pixmap   Method New(w:Int,h:Int) Super.New(w,h) end   method Rect(rx:Int,ry:int,rw:int,rh:Int,c:Color) For Local y:=ry Until ry+rh For Local x:=rx until rx+rw SetPixel(x,y,c) Next next End   method Ball(rx:Int,ry:int,r:Int,c:Color) For Local y:=-r To r For Local x:=-r To r Local dd:=x*x+y*y If dd<r*r SetPixel(rx+x,ry+y,c) endif Next next End   End   Class Tile   Field pixmap:=New PixelMap(32,32) Field image:Image   Method New() pixmap.Clear(Color.None) pixmap.Rect(4,4,24,24,Color.Blue) pixmap.Rect(6,6,20,20,Color.DarkGrey) pixmap.Ball(16,16,10,Color.Black) For Local i:=5 to 27 Step 2 pixmap.Rect(i,5,1,22,Color.White) next image=new Image(pixmap) end   end   Class GridWindow Extends Window   Field framecount:Int Field tile:Tile Method New() Super.New("Grid",800,480) ClearColor=Color.Black tile=New Tile() End Method IsoView(c:Canvas, theta:Double, zoom:double) Local tx:=Cos(theta)*zoom Local ty:=Sin(theta)*zoom zx=ty zy=tx c.Matrix=new AffineMat3f(tx,ty*0.5,-ty,tx*0.5,400,240) End Field zx:Double Field zy:Double Global Order4:=New Int[]( 1,0,0,1, 0,1,-1,0, -1,0,0,-1, 0,-1,1,0) Method OnRender( c:Canvas ) Override App.RequestRender() Local zoom:=0.1*Mouse.Location.Y   Local theta:=0.03*framecount IsoView(c,theta,zoom)   ' calulate draw order so we scan grid from far to near   Local quadrant:Int=Int(2*theta/Pi)&3 local ix:=Order4[quadrant*4+0] local jx:=Order4[quadrant*4+1] local iy:=Order4[quadrant*4+2] local jy:=Order4[quadrant*4+3]   Local n:=20 For Local i:=-n To n For Local j:=-n To n Local x:=i*ix+j*jx Local y:=i*iy+j*jy For Local z:=12 To 0 Step -3 c.DrawImage(tile.image,x*34+z*zx,y*34+z*zy) ' c.DrawImage(tile.image,x*24,y*24,theta) next Next next framecount+=1 End Method OnKeyEvent( event:KeyEvent) Override If event.Type=EventType.KeyDown If event.Key=Key.Escape App.Terminate() Print "Escape" endif endif end End   Function Main() New AppInstance New GridWindow App.Run() End

Attachments:

1.



[Simon ArmstrongParticipant]

The zoom on this demo is going to be quite something as the traverse algorithm can hopefully be applied recursively with ample opportunity for bake to texture cycle…

[wiebowParticipant]

Ohhh, very interesting! Also the use of a custom matrix is an interesting option.
