My Character Runs into the Skybox.How do I make my Skybox Large and further Away

[En929Participant]

I was trying to make a 3D game and my character keeps running into the Skybox (or maybe Cubemap or blue background) in front of him when the game starts. I barely hold the keys down for long and it does that. Such could be seen in the pictures below. Thus, I was wondering how do I make the Skybox bigger and further away so that the character won’t run into the Skybox as easily. What do I add to my code? My code and picture is below.

Thanks

(By the way, the game below was made based off of the “ninja.monkey2” example. I started with that example and only switched the character and added controls to it so that it could move forward and backwards. But, I didn’t actually put the background there. It is what came with ninja.monkey2 example)

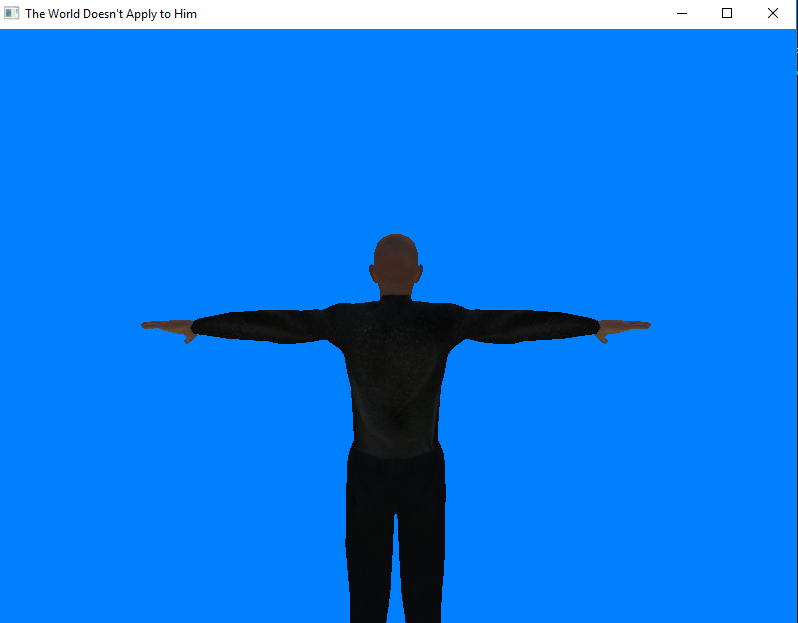

Pic 1: This is before my character moves

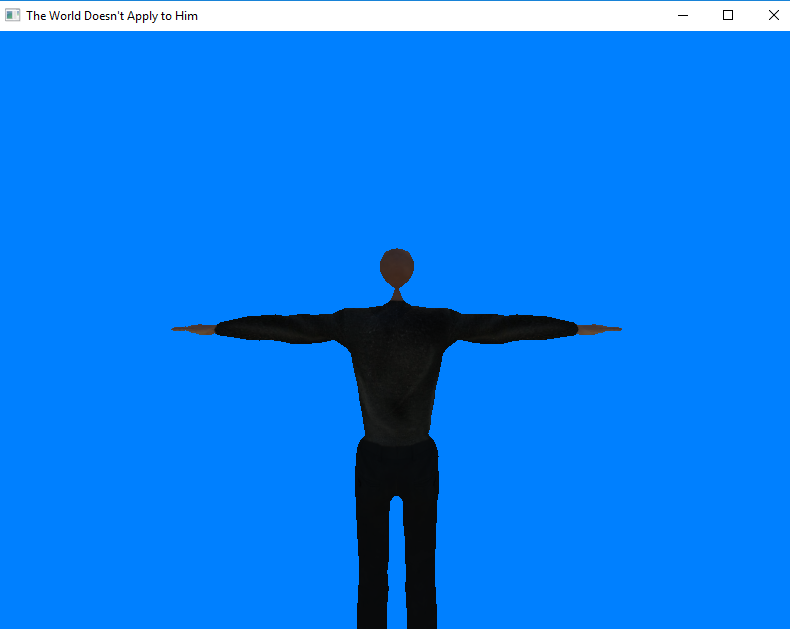

Pic 2: This is after my character moves just a little bit. It runs into the Skybox/Cubemap/or blue background in front of it.

What do I add to the code below to fix this.





Monkey

'Skybox 1015 X 1030 and 2045 X 995 for a 4095 X 3070 sized 'picture Namespace myapp #Import "<std>" #Import "<mojo>" #Import "<mojo3d>" #Import "<mojo3d-loaders>" #Import "HenryB3DAnim.b3d" #Import "Henry_color.jpg" #Import "Tower.png" Using std.. Using mojo.. Using mojo3d.. Class MyWindow Extends Window Field _scene:Scene Global _camera:Camera Field _light:Light Field _ground:Model Field Henry:Model Field _animator:Animator Field HenryX:Float = 512 '// x position on the map Field HenryY:Float = -130 Method New( title:String="The World Doesn't Apply to Him",width:Int=800,height:Int=600,flags:WindowFlags=WindowFlags.Resizable ) Super.New( title,width,height,flags ) 'create scene ' ' _scene=New Scene ' Local _bloom := New BloomEffect( 2 ) ' _scene.AddPostEffect( _bloom ) ' _scene.SkyTexture=Texture.Load( "asset::Tower.png",TextureFlags.FilterMipmap|TextureFlags.Cubemap ) ' _scene.EnvTexture = _scene.SkyTexture 'create camera ' _camera=New Camera( Self ) ' _camera.AddComponent<FlyBehaviour>() _camera.Near=.1 _camera.Far=100 '_camera.Move( 0,5,-20 ) 'create light ' _light=New Light _light.Rotate( 75,150,0 ) 'aim directional light 'down' - Pi/2=90 degrees. _light.CastsShadow=True 'create ground ' _ground=Model.CreateBox( New Boxf( -5,-5,-5,1,0,100 ),1,1,1,New PbrMaterial( Color.Green ) ) _ground.CastsShadow=False 'create turtle ' Henry=Model.LoadBoned( "asset::HenryB3DAnim.b3d" ) _animator=Henry.Animator 'Henry.RotateY( 0 ) 'The lower the number the shorter the player Henry.Scale=New Vec3f( .90 ) Henry.Position = New Vec3f(0, HenryY,40) _animator.MasterSpeed=0.5 Local anim2:=_animator.Animations[0].Slice( "Idle",1,1,AnimationMode.Looping ) Local anim1:=_animator.Animations[0].Slice( "Walk",2,30,AnimationMode.Looping ) Local anim3:=_animator.Animations[0].Slice( "Punch",31,99,AnimationMode.OneShot ) _animator.Animations.Add( anim1 ) _animator.Animations.Add( anim2 ) _animator.Animations.Add( anim3 ) End Method OnRender( canvas:Canvas ) Override RequestRender() If _animator.Animating?.Name<>"Punch" If Keyboard.KeyHit( Key.Space ) _animator.Animate( "Punch",.2 ) Else If Keyboard.KeyDown( Key.Up ) _animator.Animate( "Walk",1) ' _camera.MoveZ( -1,True ) Henry.MoveZ(1, True) Else If Keyboard.KeyDown( Key.Down ) _animator.Animate( "Walk",1) ' ' _camera.MoveZ( -1,True ) Henry.MoveZ(-1, True) Else 'idle _animator.Animate( "Idle",.2 ) Endif Endif ' _scene.Update() _camera.Render( canvas ) canvas.Scale( 640.0, 480.0 ) canvas.DrawText( "Hold [Enter] to strut, [Space] to Punch! anim time="+Henry.Animator.Time,0,0 ) End End Function Main() New AppInstance New MyWindow App.Run() End

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151

'Skybox 1015 X 1030 and 2045 X 995 for a 4095 X 3070 sized 'picture Namespace myapp   #Import "<std>" #Import "<mojo>" #Import "<mojo3d>" #Import "<mojo3d-loaders>"   #Import "HenryB3DAnim.b3d" #Import "Henry_color.jpg" #Import "Tower.png"   Using std.. Using mojo.. Using mojo3d..         Class MyWindow Extends Window Field _scene:Scene Global _camera:Camera Field _light:Light Field _ground:Model Field Henry:Model   Field _animator:Animator Field HenryX:Float = 512 '// x position on the map Field HenryY:Float = -130 Method New( title:String="The World Doesn't Apply to Him",width:Int=800,height:Int=600,flags:WindowFlags=WindowFlags.Resizable )   Super.New( title,width,height,flags ) 'create scene ' ' _scene=New Scene ' Local _bloom := New BloomEffect( 2 ) ' _scene.AddPostEffect( _bloom ) ' _scene.SkyTexture=Texture.Load( "asset::Tower.png",TextureFlags.FilterMipmap|TextureFlags.Cubemap ) ' _scene.EnvTexture = _scene.SkyTexture 'create camera ' _camera=New Camera( Self ) ' _camera.AddComponent<FlyBehaviour>() _camera.Near=.1 _camera.Far=100 '_camera.Move( 0,5,-20 ) 'create light ' _light=New Light _light.Rotate( 75,150,0 ) 'aim directional light 'down' - Pi/2=90 degrees. _light.CastsShadow=True 'create ground ' _ground=Model.CreateBox( New Boxf( -5,-5,-5,1,0,100 ),1,1,1,New PbrMaterial( Color.Green ) ) _ground.CastsShadow=False 'create turtle ' Henry=Model.LoadBoned( "asset::HenryB3DAnim.b3d" ) _animator=Henry.Animator 'Henry.RotateY( 0 ) 'The lower the number the shorter the player Henry.Scale=New Vec3f( .90 ) Henry.Position = New Vec3f(0, HenryY,40)   _animator.MasterSpeed=0.5   Local anim2:=_animator.Animations[0].Slice( "Idle",1,1,AnimationMode.Looping ) Local anim1:=_animator.Animations[0].Slice( "Walk",2,30,AnimationMode.Looping ) Local anim3:=_animator.Animations[0].Slice( "Punch",31,99,AnimationMode.OneShot ) _animator.Animations.Add( anim1 ) _animator.Animations.Add( anim2 ) _animator.Animations.Add( anim3 ) End Method OnRender( canvas:Canvas ) Override RequestRender()     If _animator.Animating?.Name<>"Punch" If Keyboard.KeyHit( Key.Space ) _animator.Animate( "Punch",.2 ) Else If Keyboard.KeyDown( Key.Up ) _animator.Animate( "Walk",1) ' _camera.MoveZ( -1,True ) Henry.MoveZ(1, True) Else If Keyboard.KeyDown( Key.Down ) _animator.Animate( "Walk",1) ' ' _camera.MoveZ( -1,True ) Henry.MoveZ(-1, True) Else 'idle _animator.Animate( "Idle",.2 ) Endif Endif ' _scene.Update() _camera.Render( canvas ) canvas.Scale( 640.0, 480.0 ) canvas.DrawText( "Hold [Enter] to strut, [Space] to Punch! anim time="+Henry.Animator.Time,0,0 ) End End   Function Main()   New AppInstance New MyWindow App.Run() End

[EthernautParticipant]

Seems like you’re hitting the camera far clipping plane. Try setting _camera.Far to a much higher value, like 1000 or 10000.

While you’re at it, you may want to check your model’s scale. Ideally, you should keep 1 unit = 1 meter. Some apps like Maya seem to default to 1 unit = 1cm, which makes everything 100 times larger than it should and causes all sorts of precision issues in large scenes (not just in games, even in pre-rendered stuff like feature films).

Cheers.

[En929Participant]

Thanks Ethernaut! That worked. And thanks the advice about the model scale too.
