Some notes about Pixmap

Tagged: pixmap

This topic contains 7 replies, has 5 voices, and was last updated by Gwenel 5 months, 2 weeks ago.

Viewing 8 posts - 1 through 8 (of 8 total)

Author

Posts

December 4, 2017 at 8:10 am #12101

nerobot

Participant

Working on ImageTrimmer app I found one interesting thing:

If you use pixmap with PremultiplyAlpha=True – when loading or after making some changes with pixels, then save pixmap – and you get pixels artefacts in saved version!

I wanted to save on extra loading of pixmap and my steps were:

Load pixmap with premultiply alpha
Create image using our pixmap
Processing pixmap pixels
Save pixmap into file
(I load and save PNG format)

Then I load just saved image and see artefacts in semi-transparent pixels.

Solution is:

To load an extra pixmap for processing without premultiply alpha.

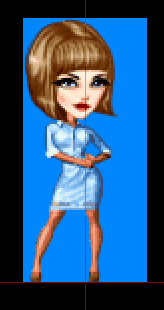

See the GIF with artefacts – bordered version is wrong (don’t pay attention on red cross).

And see on the second image with sky blue background (I can’t remove incorrect attached file).

Attachments:

December 4, 2017 at 12:05 pm #12108

abakobo

Participant

I’ve had problems saving the pixmap to png too. I think it uses some png compression by default thus artifacts. It’s probably just a flag under the hood though.

December 4, 2017 at 12:58 pm #12111

nerobot

Participant

@abakobo try to just resave pixmap without touching pixelFormat and alpha:

Local pix:=Pixmap.Load( srcPath ) 'format=none, calcAlpha=false
pix.Save( destPath )

1 2	Local pix:=Pixmap.Load( srcPath ) 'format=none, calcAlpha=false pix.Save( destPath )

it is an artefacts-free for me.

December 4, 2017 at 7:57 pm #12112

Mark Sibly

Keymaster

I think it uses some png compression by default thus artifacts.

PNG uses loseless compression – if there are artifacts it’s a bug (possibly mine or STBs).

December 5, 2017 at 3:49 am #12127

nerobot

Participant

mojo.Image uses Pixmap with premultiplied alpha.

If you’ll save such pixmap then you’ll get artifacts on next loading image – alpha will be premultiplied twice here.

I think this is the reason.

PNG loader itself works well.

December 5, 2017 at 4:24 am #12128

Simon Armstrong

Participant

According to the spec https://www.w3.org/TR/PNG-Rationale.html PNG should not contain premultiplied alpha pixels. Is it likely the SavePNG function needs to un-premultiply pixel data before saving?

December 5, 2017 at 4:31 pm #12146

abakobo

Participant

Can’t reproduce the artifacts I had at a time. All working good now! (not using alpha)

November 1, 2018 at 2:57 pm #15554

Gwenel

Participant

You can unpremultiply before saving. This is a test using the basic pixellformat (RGBA8 which I think that’s Monkey2’s default format).

Sorry if it is a bit more lengthy than it needs to be at the moment.

#Import "<std>"
#Import "<mojo>"
#Import "<sdl2>"
#import "<openal>"
Using std..
Using mojo..
Using sdl2..

Const w:=800, h:=600

Function Main()
	New AppInstance
	New Myapp(w,h)
	App.Run()
End

' improve png size

Class Myapp Extends Window

	Field counter:Int = 1
	Field pixmap:Pixmap
	Field image:Image

	Method New( title:String="Myapp",width:Int=w,height:Int=h,flags:WindowFlags=WindowFlags.Resizable )
		Super.New(title,w,h,flags)

		App.FileDropped+=Lambda(path:String)
			Print path

			pixmap = pixmap.Load(path,,False)
			If path.Slice(path.Length-4).ToLower()=".png"
				counter = counter + 1
				path = path.Slice(0,path.Length-4) + counter + ".png"
				Print path
			Endif

			' A manual premultyplying routine.
			' If you don't wannat use the Premultiply flag in Pixmap.Load or pixmap.PremultiplyAlpha().

	Local p:=Cast<UInt Ptr>(pixmap.Data)
	Local w:Int = pixmap.Width
	Local x:Int,y:Int
	For y=0 Until h
		For x=0 Until w

			' Read the red, green, blue, and alpha from the pixmap
			Local r:UInt = (p[y*w+x] & $ff)
			Local g:UInt = (p[y*w+x] Shr 8 & $ff)
			Local b:UInt = (p[y*w+x] Shr 16 & $ff)
			Local a:UInt = (p[y*w+x] Shr 24 & $ff)

			' The magic
		 	Local rf:Float = r / 255.0
		 	Local gf:Float = g / 255.0
		 	Local bf:Float = b / 255.0
		 	Local af:Float = a / 255.0
			rf=rf*af ; gf=gf*af ; bf=bf*af

			' Now combine everything back into the pixmap
			r=UInt(rf*255.0)
			g=UInt(gf*255.0)
			b=UInt(bf*255.0)
			a=UInt(af*255.0)
			Local mixed:UInt = a Shl 24
			mixed=mixed + (b Shl 16)
			mixed=mixed + (g Shl 8)
			mixed=mixed + r
			p[y*w+x] = mixed
		Next
	Next
' ----------------------------------------------------------------------------------------------------------------------------
			image = New Image(pixmap)
			Local savecanvas := New Canvas(image)
			Local savepixmap := savecanvas.CopyPixmap(savecanvas.Viewport)

			' Demultiply before saving

			p=Cast<UInt Ptr>(savepixmap.Data)
	 w = savepixmap.Width
	For y=0 Until h
		For x=0 Until w
			' Read the red, green, blue, and alpha from the pixmap
			Local r:UInt = (p[y*w+x] & $ff)
			Local g:UInt = (p[y*w+x] Shr 8 & $ff)
			Local b:UInt = (p[y*w+x] Shr 16 & $ff)
			Local a:UInt = (p[y*w+x] Shr 24 & $ff)

			' The magic
		 	Local rf:Float = r / 255.0
		 	Local gf:Float = g / 255.0
		 	Local bf:Float = b / 255.0
		 	Local af:Float = a / 255.0
			If af>0 Then rf=rf/af ; gf=gf/af ; bf=bf/af

			' Combine everything into the pixmap
			r=UInt(rf*255.0)
			g=UInt(gf*255.0)
			b=UInt(bf*255.0)
			a=UInt(af*255.0)
			Local mixed:UInt = a Shl 24
			mixed=mixed + (b Shl 16)
			mixed=mixed + (g Shl 8)
			mixed=mixed + r
			p[y*w+x] = mixed
		Next
	Next
			savepixmap.Save(path+"")
		End

	End

	Method OnRender(canvas:Canvas) Override
		App.RequestRender()
		canvas.TextureFilteringEnabled = False
		If image
		canvas.Color = Color.Blue
		canvas.DrawOval(200,200,100,100)
		canvas.Color = Color.White
			canvas.DrawImage(image,0,0)
			canvas.DrawImage(image,100,100)
			Endif
	End
End

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

#Import "<std>"

#Import "<mojo>"

#Import "<sdl2>"

#import "<openal>"

Using std..

Using mojo..

Using sdl2..

Const w:=800, h:=600

Function Main()

New AppInstance

New Myapp(w,h)

App.Run()

End

' improve png size

Class Myapp Extends Window

Field counter:Int = 1

Field pixmap:Pixmap

Field image:Image

Method New( title:String="Myapp",width:Int=w,height:Int=h,flags:WindowFlags=WindowFlags.Resizable )

Super.New(title,w,h,flags)

App.FileDropped+=Lambda(path:String)

Print path

pixmap = pixmap.Load(path,,False)

If path.Slice(path.Length-4).ToLower()=".png"

counter = counter + 1

path = path.Slice(0,path.Length-4) + counter + ".png"

Print path

Endif

' A manual premultyplying routine.

' If you don't wannat use the Premultiply flag in Pixmap.Load or pixmap.PremultiplyAlpha().

Local p:=Cast<UInt Ptr>(pixmap.Data)

Local w:Int = pixmap.Width

Local x:Int,y:Int

For y=0 Until h

For x=0 Until w

' Read the red, green, blue, and alpha from the pixmap

Local r:UInt = (p[y*w+x] & $ff)

Local g:UInt = (p[y*w+x] Shr 8 & $ff)

Local b:UInt = (p[y*w+x] Shr 16 & $ff)

Local a:UInt = (p[y*w+x] Shr 24 & $ff)

' The magic

Local rf:Float = r / 255.0

Local gf:Float = g / 255.0

Local bf:Float = b / 255.0

Local af:Float = a / 255.0

rf=rf*af ; gf=gf*af ; bf=bf*af

' Now combine everything back into the pixmap

r=UInt(rf*255.0)

g=UInt(gf*255.0)

b=UInt(bf*255.0)

a=UInt(af*255.0)

Local mixed:UInt = a Shl 24

mixed=mixed + (b Shl 16)

mixed=mixed + (g Shl 8)

mixed=mixed + r

p[y*w+x] = mixed

' ----------------------------------------------------------------------------------------------------------------------------

image = New Image(pixmap)

Local savecanvas := New Canvas(image)

Local savepixmap := savecanvas.CopyPixmap(savecanvas.Viewport)

' Demultiply before saving

p=Cast<UInt Ptr>(savepixmap.Data)

w = savepixmap.Width

For y=0 Until h

For x=0 Until w

' Read the red, green, blue, and alpha from the pixmap

Local r:UInt = (p[y*w+x] & $ff)

Local g:UInt = (p[y*w+x] Shr 8 & $ff)

Local b:UInt = (p[y*w+x] Shr 16 & $ff)

Local a:UInt = (p[y*w+x] Shr 24 & $ff)

' The magic

Local rf:Float = r / 255.0

Local gf:Float = g / 255.0

Local bf:Float = b / 255.0

Local af:Float = a / 255.0

If af>0 Then rf=rf/af ; gf=gf/af ; bf=bf/af

' Combine everything into the pixmap

r=UInt(rf*255.0)

g=UInt(gf*255.0)

b=UInt(bf*255.0)

a=UInt(af*255.0)

Local mixed:UInt = a Shl 24

mixed=mixed + (b Shl 16)

mixed=mixed + (g Shl 8)

mixed=mixed + r

p[y*w+x] = mixed

savepixmap.Save(path+"")

End

Method OnRender(canvas:Canvas) Override

App.RequestRender()

canvas.TextureFilteringEnabled = False

If image

canvas.Color = Color.Blue

canvas.DrawOval(200,200,100,100)

canvas.Color = Color.White

canvas.DrawImage(image,0,0)

canvas.DrawImage(image,100,100)

Endif

End
