Seamless textures or tiles generator

[PakzParticipant]

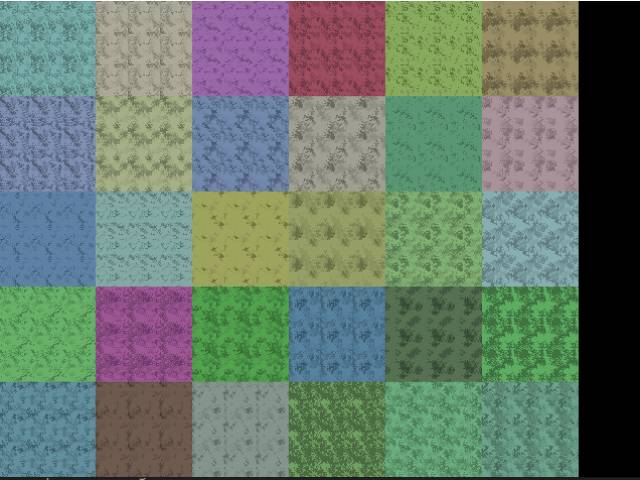

Was working on a project and got sidetracked with one part of it and I turned it into this example. It creates seamless textures or tiles. It takes a set of inputs. It is also on my github but I though I would also share it here.

I commented most of the code.

Monkey

' ' Create seamless grow tiles. ' ' ' #Import "<std>" #Import "<mojo>" Using std.. Using mojo.. ' ' Here is our tile class. ' Class tile ' width and height of the tile Field tilewidth:Float,tileheight:Float ' our image and canvas Field tileim:Image Field tilecan:Canvas ' number of different colors on the tile Field numzones:Int' (0..x) ' our base color Field col:Color ' how dense(much) should the added zones be (0.1) Field density:Float ' how much should these zones be spread out (0.1) Field spread:Float ' Here we create our tile Method New(tilewidth:Float,tileheight:Float,numzones:Int,density:Float,spread:Float,col:Color) Self.tilewidth = tilewidth Self.tileheight = tileheight Self.numzones = numzones Self.col = col Self.density = density Self.spread = spread ' Call the generatetiles method generatetiles() End Method Method generatetiles() ' create our image and canvas tileim = New Image(tilewidth,tileheight) tilecan = New Canvas(tileim) ' ' Create a array with the image width and height ' where we create zones(numbers) on. ' This with the spread and number of zones takes into account Local m:Int[,] = New Int[tilewidth,tileheight] For Local i:Int=0 Until (tilewidth*tileheight/50)*(spread*3) m[Rnd(0,tilewidth),Rnd(0,tileheight)] = Rnd(1,numzones+1) Next ' ' Here we grow the zones. We exit if the desired density is reached Local maxdensity:Int=(tilewidth*tileheight)*(density/1.5) Local curdensity:Int=0 While curdensity<maxdensity ' pick a random x and y spot in the array Local x:Int=Rnd(0,tilewidth) Local y:Int=Rnd(0,tileheight) ' pick a position on or besides this spot Local nx:Int=x+Rnd(-2,2) Local ny:Int=y+Rnd(-2,2) ' if this new spot is a zone If m[x,y] > 0 'Make sure that we make it seamless ' This is done by jumping to the other ' side if the new position is out of the edge. If nx<0 Then nx=tilewidth-1 If nx>=tilewidth Then nx=0 If ny<0 Then ny=tileheight-1 If ny>=tileheight Then ny=0 ' put the chosen spot on the new spot m[nx,ny] = m[x,y] End If ' Count or current density ' This is done by counting every value above 0 curdensity = 0 For Local a:Int=0 Until tileheight For Local b:Int=0 Until tilewidth If m[a,b] > 0 Then curdensity += 1 Next Next Wend ' ' Here we should have the actual image data ' finsihed. All we need to do is to turn it ' into a image. ' ' create the tile image ' cold is used to get a shade based on the base color Local cold:Float=1.0/Float(numzones*3) ' Loop through every pixel of the array and image For Local y:Int=0 Until tileheight For Local x:Int=0 Until tilewidth ' set the color base on the array value tilecan.Color = col.Blend(Color.Black,Float(m[x,y])*cold) ' plot this color into the tile image tilecan.DrawPoint(x,y) Next Next ' flush the image tilecan.Flush() End Method ' Here we draw a map of desired widht and height using the tile ' at the x and y position Method draw(canvas:Canvas,xpos:Int,ypos:Int,w:Int,h:Int) For Local y:Int=0 Until h For Local x:Int=0 Until w canvas.DrawImage(tileim,xpos+(x*tilewidth),ypos+(y*tileheight)) Next Next End Method End Class Class MyWindow Extends Window ' ' Create a array of world with dimensions 6 wide and 5 heigh ' Field maps:tile[,] = New tile[6,5] Method New() ' create the initial set of tiles makethetiles() End method Method OnRender( canvas:Canvas ) Override App.RequestRender() ' Activate this method ' ' If we press space then create new set of tiles If Keyboard.KeyReleased(Key.Space) makethetiles() End If ' ' Draw our tiles to the screen For Local y:Int=0 Until 5 For Local x:Int=0 Until 6 'Method draw(canvas:Canvas,xpos:Int,ypos:Int,w:Int,h:Int) maps[x,y].draw(canvas,x*96,y*96,3,3) Next Next canvas.Color = Color.White canvas.DrawText("Press Space to generate new tiles",0,0) ' if key escape then quit If Keyboard.KeyReleased(Key.Escape) Then App.Terminate() End Method ' ' Here we create the tiles in our world array Method makethetiles() For Local y:Int=0 Until 5 For Local x:Int=0 Until 6 'Method New(tilewidth:Float,tileheight:Float,numzones:Int,density:Float,spread:Float,col:Color) maps[x,y] = New tile(32,32,Rnd(1,20),Rnd(.2,1),Rnd(.2,1),New Color(Rnd(.3,.7),Rnd(.3,.7),Rnd(.3,.7))) Next Next End Method End Class Function Main() New AppInstance New MyWindow App.Run() End Function

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163

' ' Create seamless grow tiles. ' ' '     #Import "<std>" #Import "<mojo>"   Using std.. Using mojo.. ' ' Here is our tile class. ' Class tile ' width and height of the tile Field tilewidth:Float,tileheight:Float ' our image and canvas Field tileim:Image Field tilecan:Canvas ' number of different colors on the tile Field numzones:Int' (0..x) ' our base color Field col:Color ' how dense(much) should the added zones be (0.1) Field density:Float ' how much should these zones be spread out (0.1) Field spread:Float ' Here we create our tile Method New(tilewidth:Float,tileheight:Float,numzones:Int,density:Float,spread:Float,col:Color) Self.tilewidth = tilewidth Self.tileheight = tileheight Self.numzones = numzones Self.col = col Self.density = density Self.spread = spread ' Call the generatetiles method generatetiles() End Method Method generatetiles() ' create our image and canvas tileim = New Image(tilewidth,tileheight) tilecan = New Canvas(tileim) ' ' Create a array with the image width and height ' where we create zones(numbers) on. ' This with the spread and number of zones takes into account Local m:Int[,] = New Int[tilewidth,tileheight] For Local i:Int=0 Until (tilewidth*tileheight/50)*(spread*3) m[Rnd(0,tilewidth),Rnd(0,tileheight)] = Rnd(1,numzones+1) Next ' ' Here we grow the zones. We exit if the desired density is reached Local maxdensity:Int=(tilewidth*tileheight)*(density/1.5) Local curdensity:Int=0 While curdensity<maxdensity ' pick a random x and y spot in the array Local x:Int=Rnd(0,tilewidth) Local y:Int=Rnd(0,tileheight) ' pick a position on or besides this spot Local nx:Int=x+Rnd(-2,2) Local ny:Int=y+Rnd(-2,2) ' if this new spot is a zone If m[x,y] > 0 'Make sure that we make it seamless ' This is done by jumping to the other ' side if the new position is out of the edge. If nx<0 Then nx=tilewidth-1 If nx>=tilewidth Then nx=0 If ny<0 Then ny=tileheight-1 If ny>=tileheight Then ny=0 ' put the chosen spot on the new spot m[nx,ny] = m[x,y] End If ' Count or current density ' This is done by counting every value above 0 curdensity = 0 For Local a:Int=0 Until tileheight For Local b:Int=0 Until tilewidth If m[a,b] > 0 Then curdensity += 1 Next Next Wend ' ' Here we should have the actual image data ' finsihed. All we need to do is to turn it ' into a image. ' ' create the tile image ' cold is used to get a shade based on the base color Local cold:Float=1.0/Float(numzones*3) ' Loop through every pixel of the array and image For Local y:Int=0 Until tileheight For Local x:Int=0 Until tilewidth ' set the color base on the array value tilecan.Color = col.Blend(Color.Black,Float(m[x,y])*cold) ' plot this color into the tile image tilecan.DrawPoint(x,y) Next Next ' flush the image tilecan.Flush() End Method ' Here we draw a map of desired widht and height using the tile ' at the x and y position Method draw(canvas:Canvas,xpos:Int,ypos:Int,w:Int,h:Int) For Local y:Int=0 Until h For Local x:Int=0 Until w canvas.DrawImage(tileim,xpos+(x*tilewidth),ypos+(y*tileheight)) Next Next End Method End Class     Class MyWindow Extends Window ' ' Create a array of world with dimensions 6 wide and 5 heigh ' Field maps:tile[,] = New tile[6,5] Method New() ' create the initial set of tiles makethetiles() End method Method OnRender( canvas:Canvas ) Override App.RequestRender() ' Activate this method ' ' If we press space then create new set of tiles If Keyboard.KeyReleased(Key.Space) makethetiles() End If ' ' Draw our tiles to the screen For Local y:Int=0 Until 5 For Local x:Int=0 Until 6 'Method draw(canvas:Canvas,xpos:Int,ypos:Int,w:Int,h:Int) maps[x,y].draw(canvas,x*96,y*96,3,3) Next Next canvas.Color = Color.White canvas.DrawText("Press Space to generate new tiles",0,0) ' if key escape then quit If Keyboard.KeyReleased(Key.Escape) Then App.Terminate() End Method ' ' Here we create the tiles in our world array Method makethetiles() For Local y:Int=0 Until 5 For Local x:Int=0 Until 6 'Method New(tilewidth:Float,tileheight:Float,numzones:Int,density:Float,spread:Float,col:Color) maps[x,y] = New tile(32,32,Rnd(1,20),Rnd(.2,1),Rnd(.2,1),New Color(Rnd(.3,.7),Rnd(.3,.7),Rnd(.3,.7))) Next Next End Method End Class   Function Main() New AppInstance New MyWindow App.Run() End Function

Attachments:

1.
